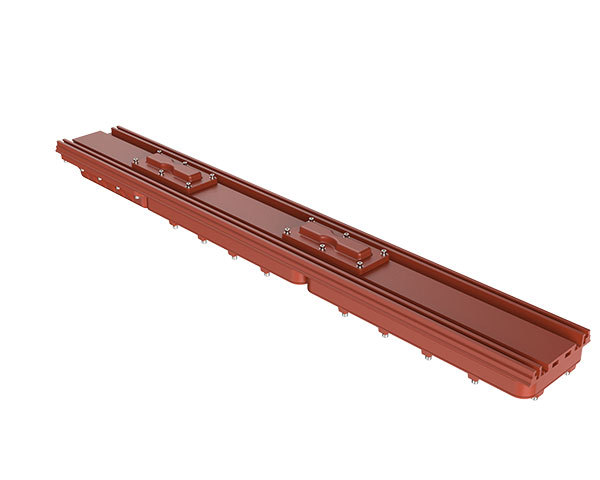

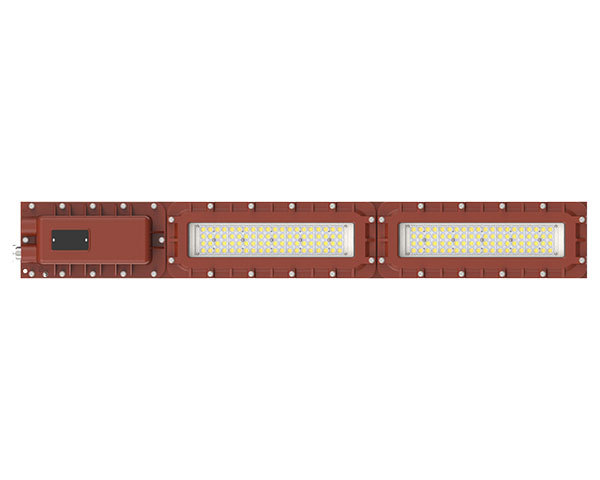

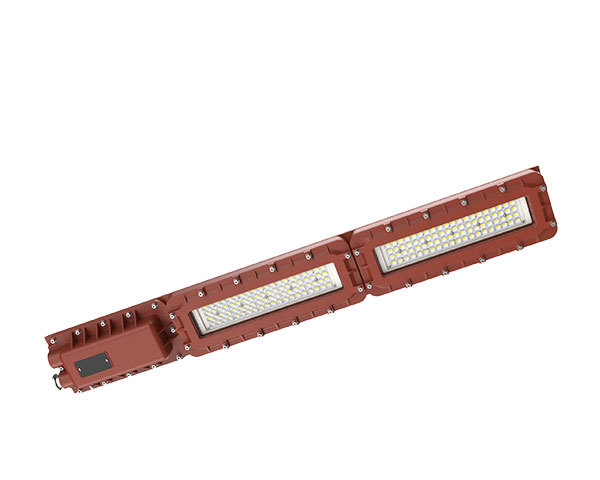

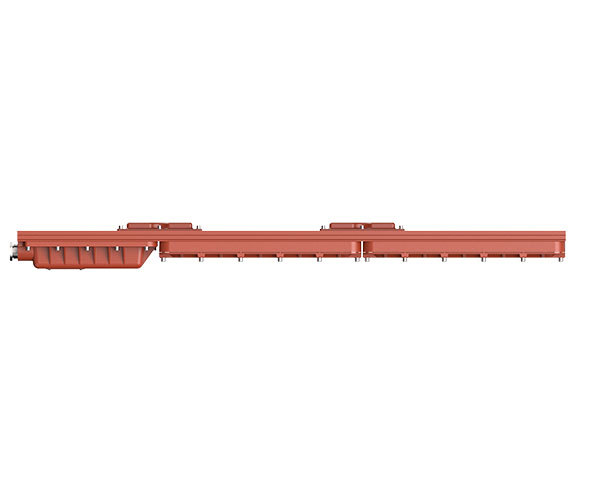

Model No.
|
HL161-30W
|
HL161-40W
|
HL161-60W
|
HL161-80W
|
HL161-100W
|
|
|---|---|---|---|---|---|---|
|
Power
|
30W
|
40W
|
60W
|
80W
|
100W
|
|
|
Product Dimension
|
630×136×87mm
|
1002×136×87mm
|
||||
| Efficiency |
140±10lm/W
|
|||||
|
Luminous Flux
|
4200±300lm
|
5600±400lm
|
8400±600lm
|
11200±800lm
|
14000±1000lm
|
|
|
CCT
|
3000K; 4000K; 5000K; 5700K; 6500K
|
|||||
|
Ingress Protection
|
IP66 & IK10
|
|||||
|
Wind resistance
|
Class12(32.7 36.9 m/s)
|
|||||
|
Color Rendering Index
|
Ra>70
|
|||||
|
Beam Angle
|
30° 60° 80°
|
|||||
|
Driver Brand
|
TOMCARLINE
|
|||||
|
Input Voltage
|
AC120-277V
|
|||||
|
Power Factor
|
>0.9
|
|||||
|
Frequency
|
50/60Hz
|
|||||
|
Driver Type
|
Constant Current(CC)
|
|||||
|
Luminaire Net Weight
|
6.5kg
|
10.4kg
|
10.5kg
|
|||
|
Packing Information
|
1PCS/CTN
|
1PCS/CTN
|
1PCS/CTN
|
|||
|
Gross
Weight
|
Ceiling
|
7.9kg
|
12.0kg
|
12.1kg
|
||
|
Side wall
|
8.3kg
|
12.4kg
|
12.5kg
|
|||
|
Pole
|
8.8kg
|
12.9kg
|
13.0kg
|
|||
|
Export Carton Size
|
88.5×20.6×13.5cm
|
125.5×20.6×13.5cm
|
||||
|
Conduit opening
|
NPT3/4-14
|
|||||
|
Material
|
Housing
|
6063-T5 ADC12
|
||||
|
Optics
|
Lens and Light-transmitting parts
|
|||||
|
Fixture Color
|
Red
|
|||||
|
Installation
|
Side wall mounting/ Ceiling mounting/ Pole mounting
|
|||||
|
Operating temperature range
|
-20℃~+60℃
|
|||||
|
Life Time
|
50000 hours
|
|||||
|
Warranty
|
5 Years
|
|||||
|
Dimmable
|
Non-dimmable
|
|||||
|
Certifications
|
Class I Division 1 Group B,C D T6 / Class I Division 2 Group B,C D T6
|
|||||
